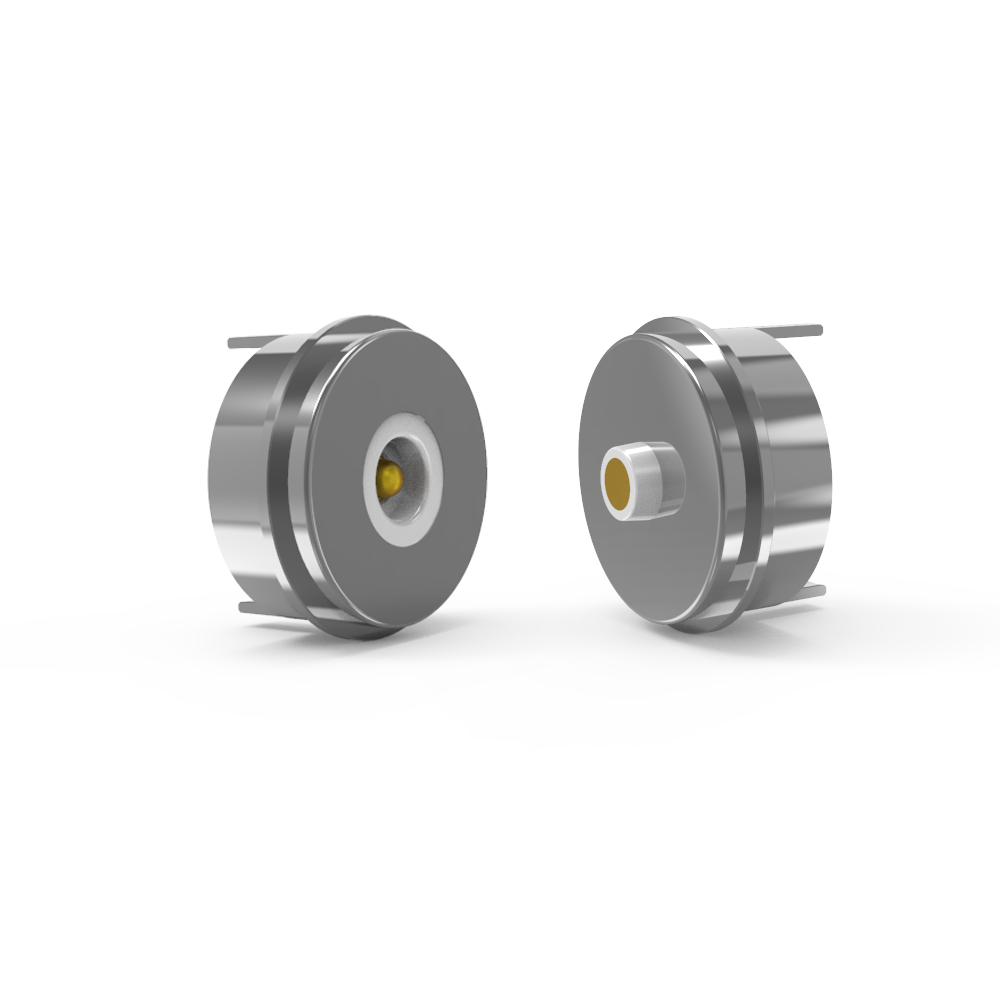

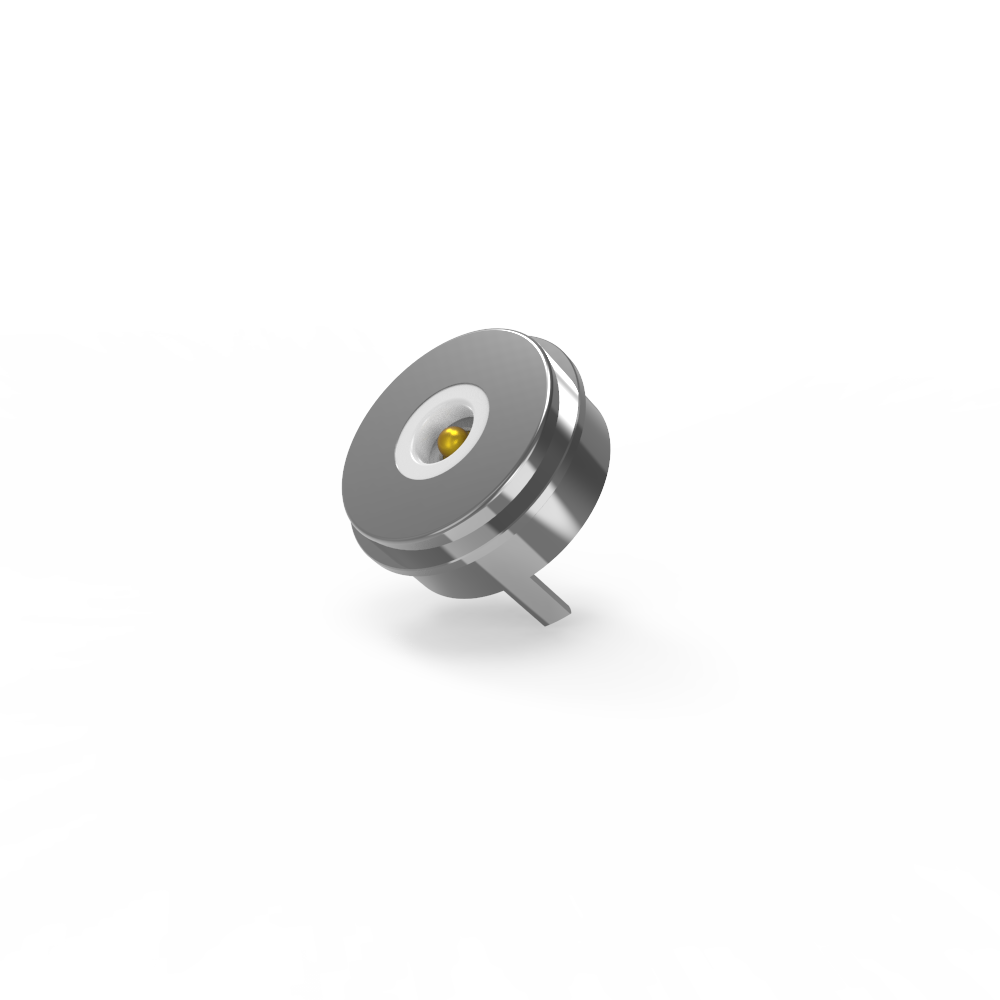

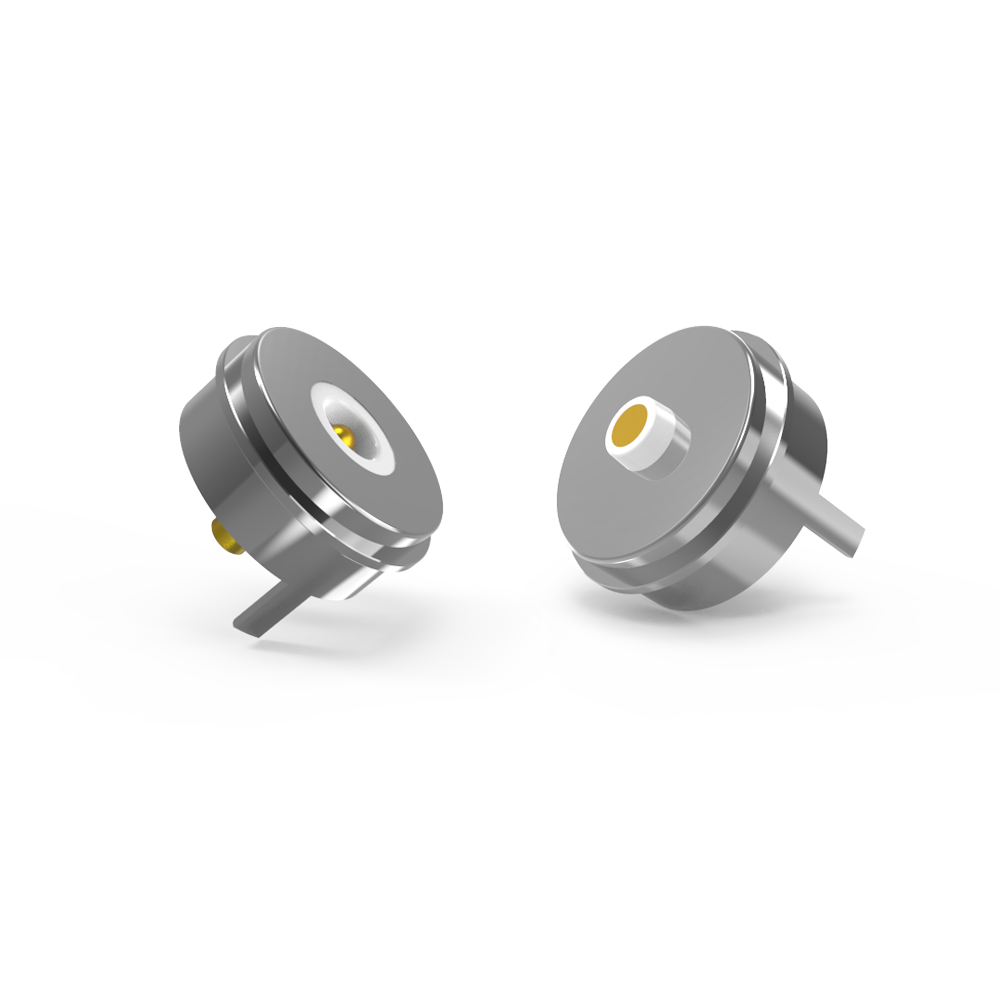

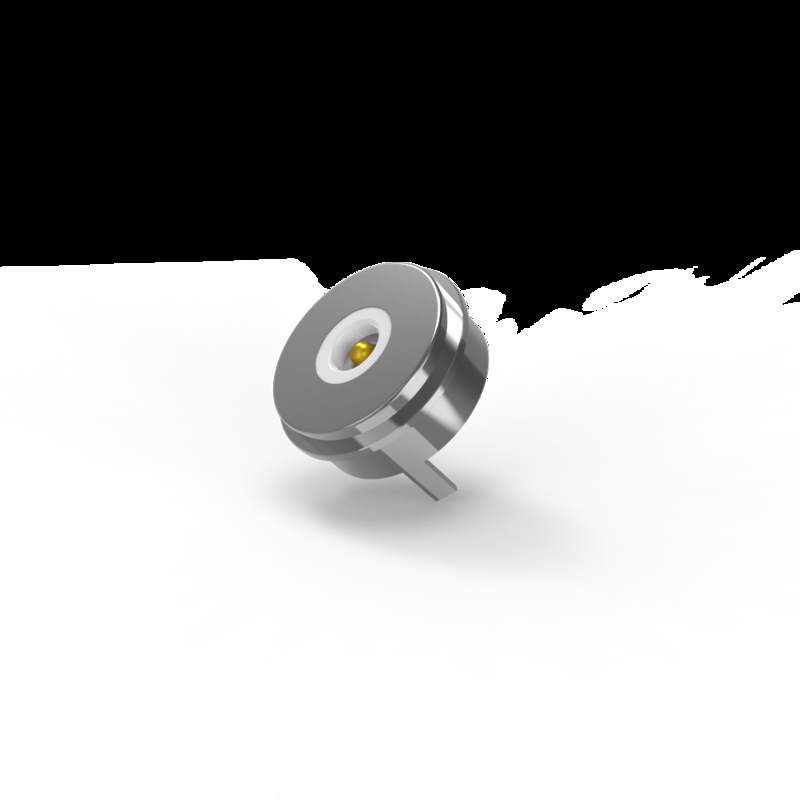

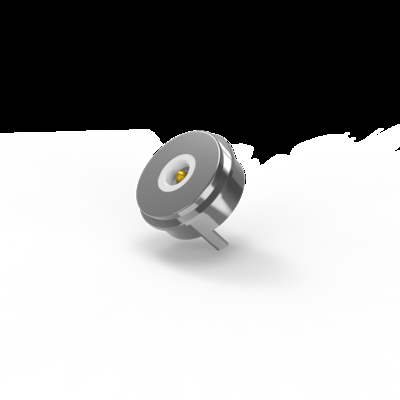

10mm round male female magnetic connector 12V 5A magnetic power connector

10mm round  male female magnetic connector 12V 5A magnetic power connector.

UPE professional design and manufacture magnetic connector, magnetic cable connector for customer.
You just need provide us your ID and description your products application with your requirements to us, then our engineer will give you suggestion and we also can help you to finish your products design, or UPE design it for you if you needed.

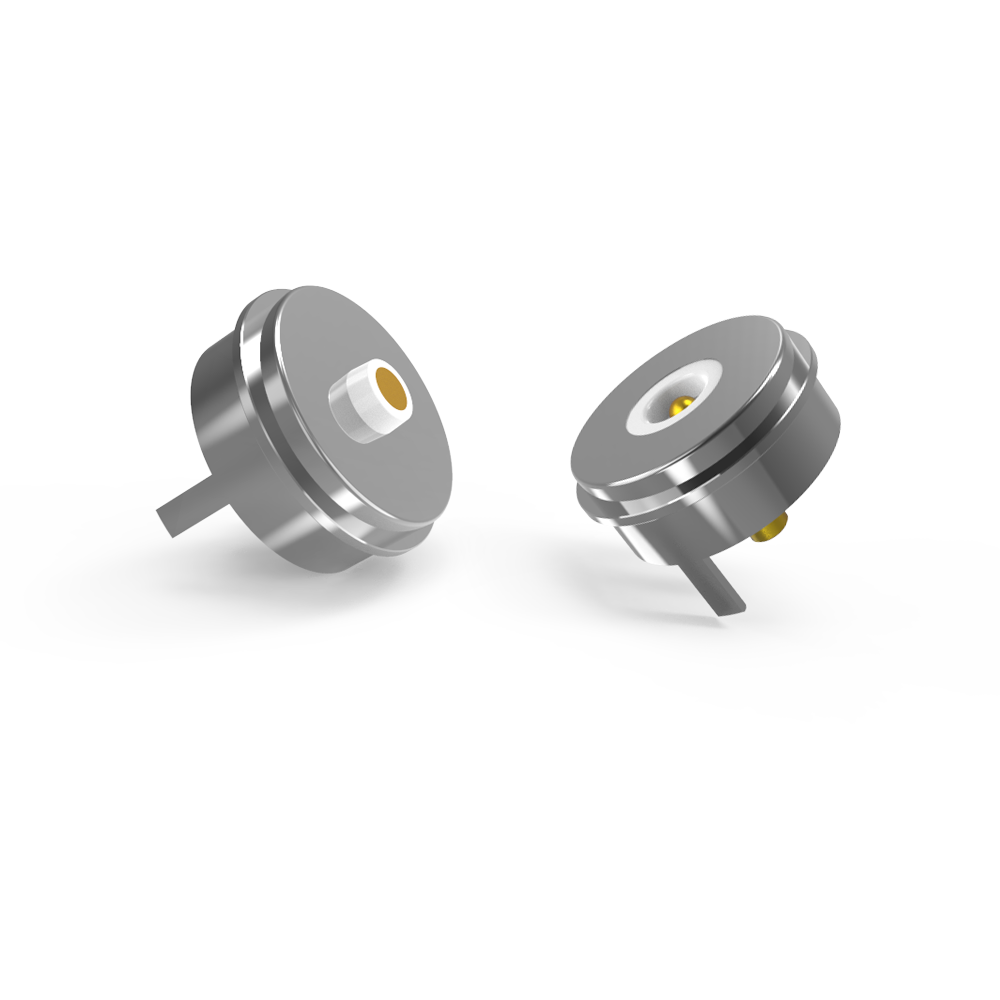

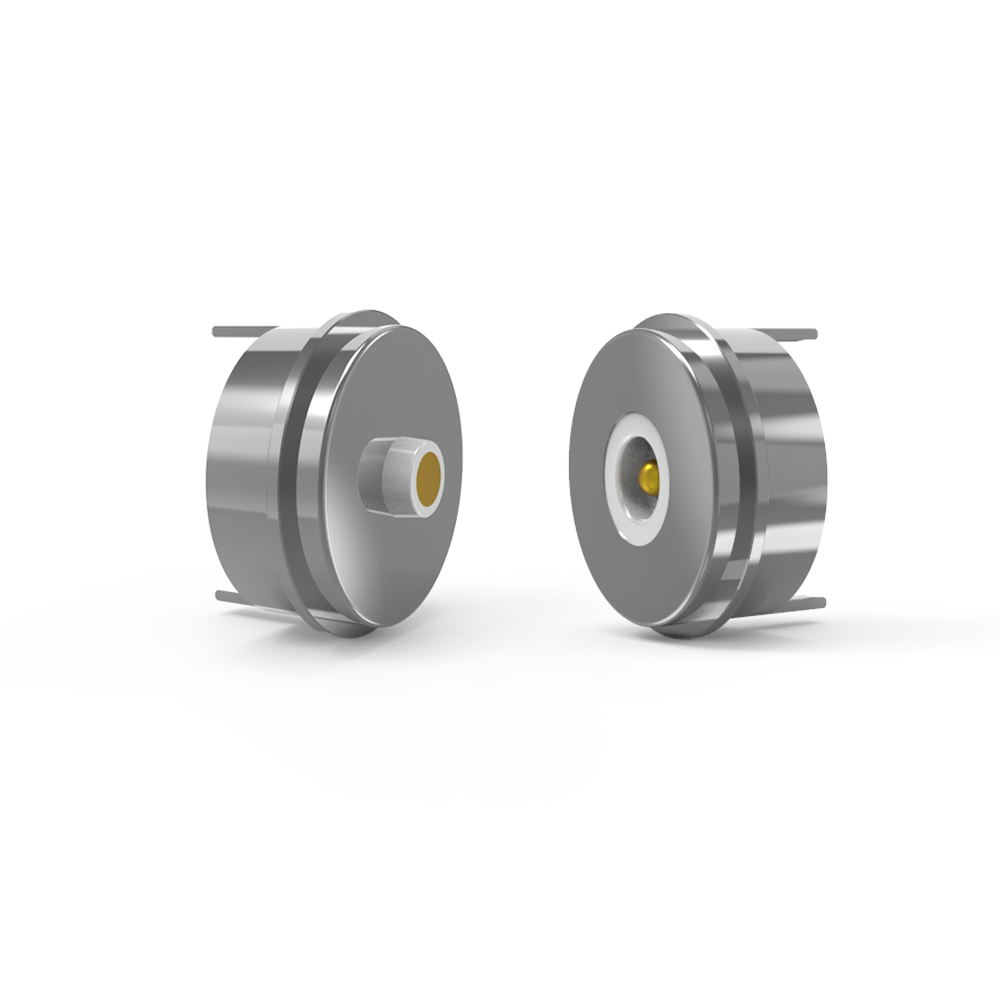

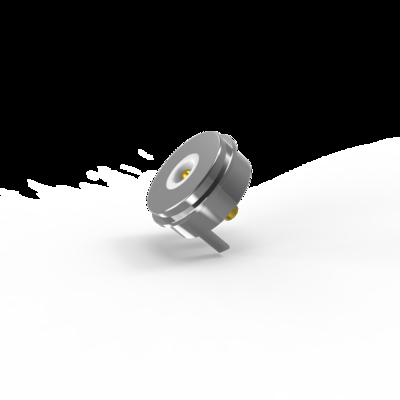

Male Magnetic Connector Part

...Material:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;
Barrel:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Spring:SUS 304 plating 1U"Au;
Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Mechanical:
Spring force:80g±20g,at 1.0mm working stroke.
Full storke:1.2mm.
Mechanical life:50000 cycle Min.
...Electrical:
Voltage:12.0 V.
Current:5.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
..& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

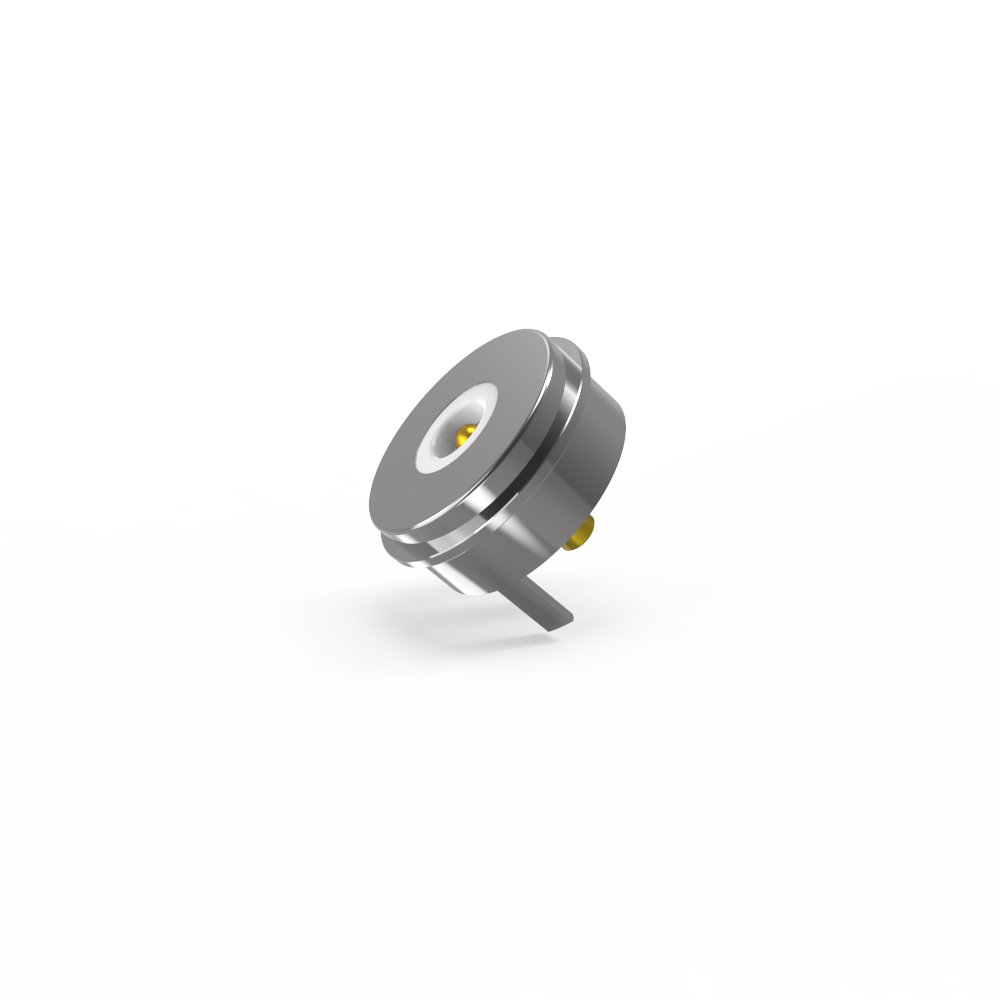

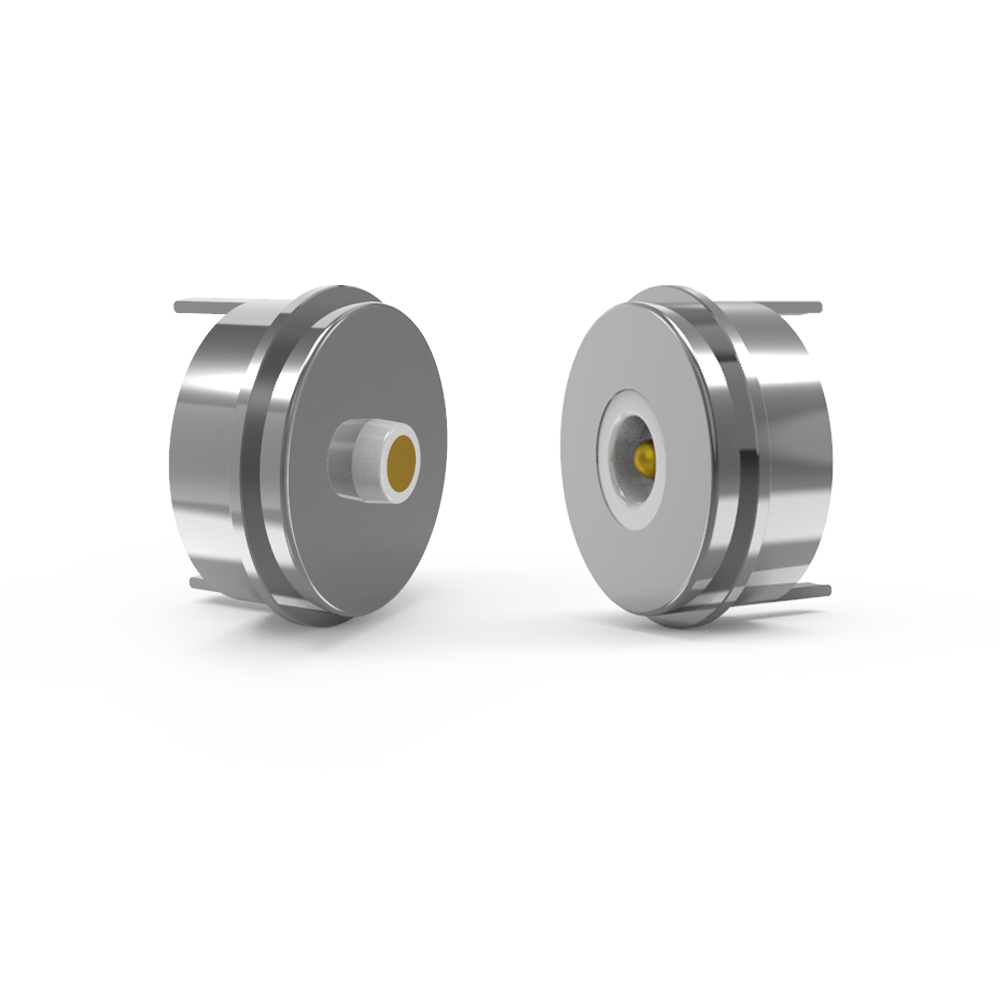

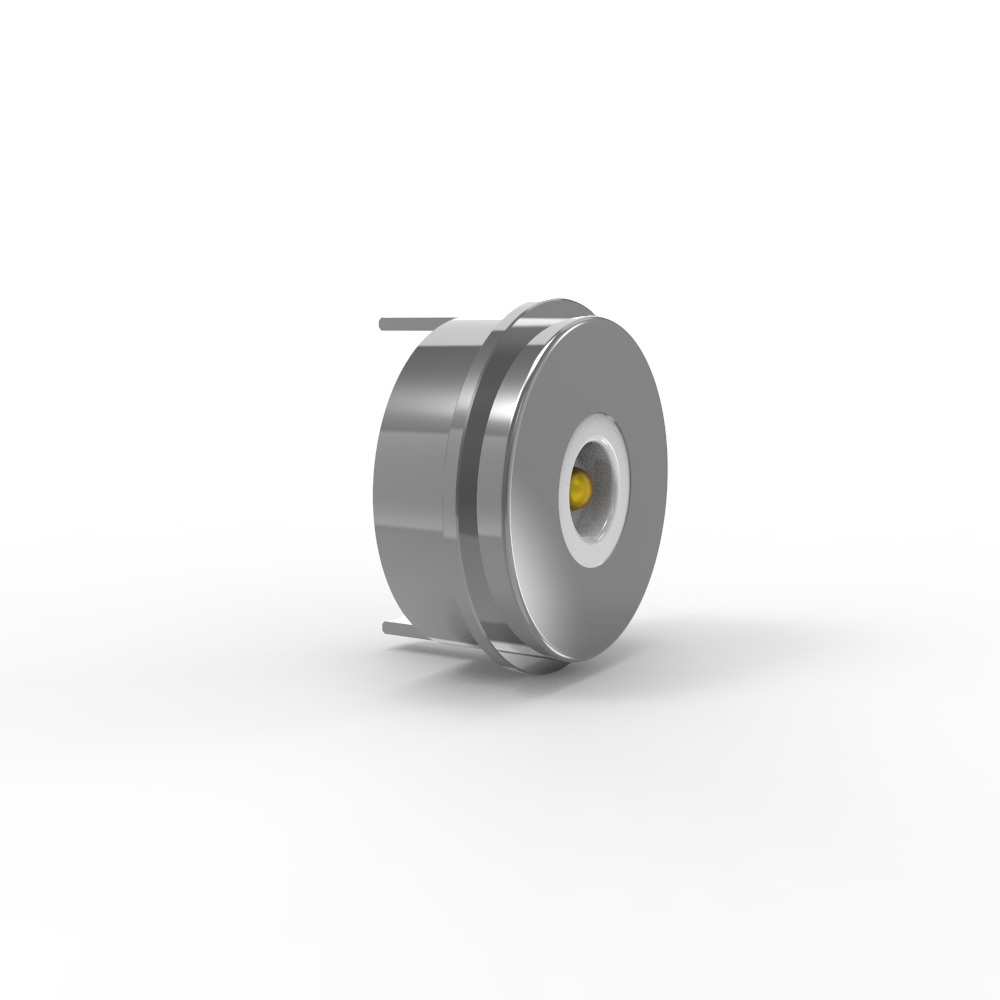

Female Magnetic Connector Part

...Materials :
PIN:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-freeC6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:5.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
...& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

DC Magnetic  Connectors Parameter:

Circular Male Magnetic Connector Technical Drawing

Circular Female Magnetic Connector Technical Drawing

PCB Layout:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

●Space-saving female connectors and PCB adapters can achieve pogo type and SMT DIP patch cord connections

●The excellent corrosion resistance grade (48H-120H) meets the requirements for use in harsh environments

●Excellent expandable interfaces, which can implement (Power Signal, Video Audio, Jack, Etc.)

●The development time is short, the mold-making cost is low, and it is suitable for customization

Magnetic connector products application:

FAQ

1.Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.

2.Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.

3.How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!

4.What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.

5.How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.
